Digital Readout System
Digital Readouts for Milling machines and Lathes; and for Grinding and Drill machines. It operates in four measurement axes of 1 um or 5 um depending on the version.
|
 |
Measuring Scales
 |
|
Compatible with readout Heidenhain
|
We offer two types of measuring encoders: Magnetic encoders and Incremental linear encoder

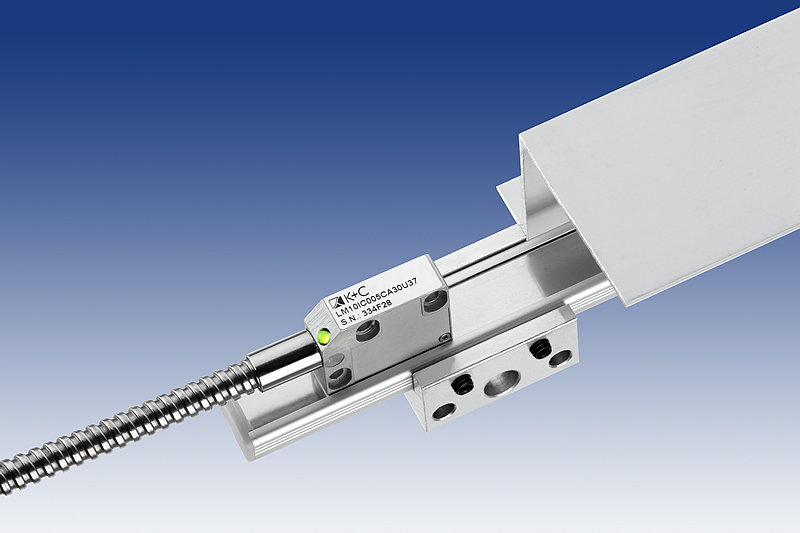

MAGNETIC ENCODERS:
1. Aluminium pad with a slot for magnet tape;
2. Adhesive measuring magnet tape;
3. Adhesive steel tape;
4. Magnet encoder (cable - 3m, could be extened by request)
5. Steel connection plugs.
Magnet measirin advatages:
- Easy mounting.
- Unlimited length;
- Flexibility for measuring circle movements;
Mounting requirements:
- Well polished surface before mounting;
- Plate with rubber pad for chips cleaning.
INCREMENTAL LINEAR ENCODERS
1. Incremental linear encoders to 3m. Cable length to 3m (could be extended by request)
