350x400 A-CNC-LR

AUTOMATIC BAND SAW MACHINE

Description

It is a highly efficient automatic hydraulically controlled band-saw with multiple material feed. The length and number of pieces are set on the control panel. The machine selects the number of feeds and performs the necessary calculations by itself. The system allows the selection from nine different settings for quick adjustment of lengths or automatic modification of lengths when sawing several dimensions from one bar. There is an automatic and a semiautomatic mode, where all movements are controlled independently. The machine is designed for vertical and angular cuts; angular cuts are steplessly adjustable from 0° to +45° right (in automatic mode) and from 0° to -45° left (in semiautomatic mode). Change of angle using quick clamping handle. The angles indicated on the digital display show the displacement of the turntable. It is suitable for serial production and thank to its robust construction enables to cut wide range of materials including stainless stells and tool steels both profiles and full materials.

Construction:

The band sawing machine has a sturdy design. The machine is constructionaly designed in that way, so that it corresponds to extreme exertions in productive conditions. That is why all carrying parts are made as cast-iron castings (solidity, damping of vibrations and stops). Parts of arm, vice and turn table is cust iron.
The arm of the machine is made of cust iron and it is designed to ensure the strenght and the precision of the cut. It is supported by adjustable bearings and firmly attached to the gear unit and to the frame by means of a joint. Arm is placed in adjustable bearings. The power and speed of the arm can be changed.
A powered cleaning brush cleans the saw-band perfectly.
The main vice and feeding vice is made of cast iron and the jaws allow a safe grip. The hydraulically controlled vice with short travel is situated in an adjustable dovetail groove. The adjustment is manual with a wheel and trapeze thread. The vice jaw travels left-right with regard the angular cut; it is secured by a crank.
The feeding vice is driven by the hydraulic cylinder on two grinded bars by teflon cases. The feeder moves the material to be cut to the main vice according to the set lenght that was adjusted by the operator in the controlling panel. The position of the feeder is indicated by electromagnetic sensor and measuring magnetic tape. There is a floating seating of the feeding vice in the feeder, it means that the feeding vice moves in perpendicular sense regarding the feeding sense. The firm jaw of the feeding vice copies the possible roughness of feeded material and the wearing of mechanical parts of the feeder is eliminated. For a perfect placing of a feeder , feeder moves to end positions by a slow velocity.
The turntable provides enough space for supporting and gripping the material. The turning table has autoarresting every 15 grades ( the groove with the spring ). The angles indicated on the digital display show the displacement of the turntable.
Leading of blade in hard-metal plates. An electro-mechanical device for tension control and a limit switch protect the saw-band from insufficient tension and maintain perfect cutting conditions at all times.The saw-band is equipped by a guard, which protects the operator from millings and cutting emulsion.
Drive of machine is solved by worm gear box with maintenanceless oil filling. Three-phases electromotor with double winding, with a frequency converter for a fluent regulation of the blade speed from 20 to 100 m/min. Sturdy flange with shaft. Termoprotection of engine.
Cooling system for emulsion with liquid distribution to blade guides.
Robust base with a tank for chips.
Indication of blade tightening and opening of the cover
Controlling 24 V
The main switch is located on the front door. The motor allows stepless speed variation and is equipped with a safety button, which stops the saw, and another two buttons for turning it on. There is also a feed regulator and buttons, which control the various available movements necessary for managing the “SAW MICRO” tool.
Maschine is equipped by hydraulic system that manipulates all functions of that maschine. It presses the arm to cut, pulls up the arm, opens and closes vices, moving of feeder.

Basic equipment of machine:

slide of cut pieces,
blade,
set of tools,
manual instructions.

Operating cycle: The machine automatically grips the material in the main vice and the feeder moves into a position determined by the processor (i.e. the required length of the cut and a constant added length); the feeder-vice’s jaw stays open. The arm moves into the cut; after cutting the material, it moves into the upper position. The feeder moves by the constant added length (exactly to a position determined by the processor) and the feeder jaw grips the material. The vice is released; the feeder moves the material into the zero position (by the required length). The main vice grips, the feeder-vice is released and the entire cycle is repeated.The operator only removes the sawn material.

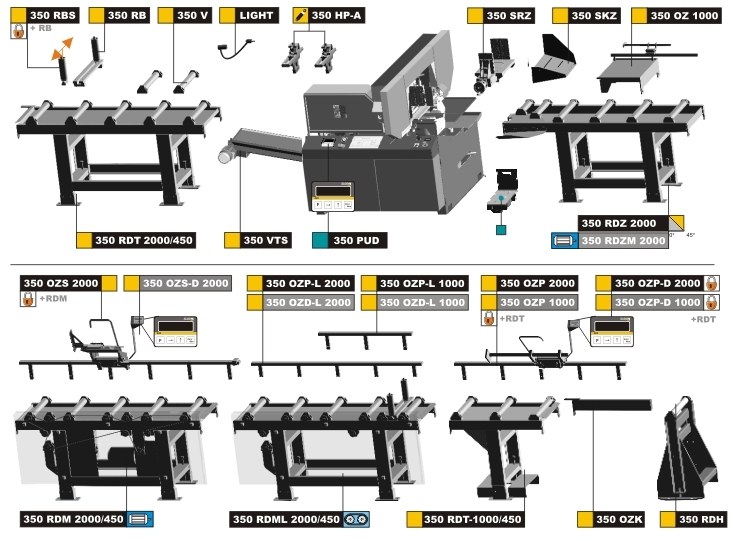

350-SRZ
350-HP-A	hydraulical upper vice for (max.width of a bundle 200mm) – set of 2 pc
350-RTS-A	regulation press of vice – set of 2 pc for bought vices
350-SKV
350-VTS	worm chip extraktor
BOX-PCS	Box for cutted pieces with emulsion draining to the waterproof tank.
BOX-TRI	Box for the chips with emulsion draining to the waterproof tank.
BOX-TAH	Tool for manipulation with BOX-TRI and BOX-PCS.
LIGHT L1	Lighting of workink space.
MINI LUBE	Wasteless lubricating systém, instead of emulsion cooling, specially for cutting profilesand non-ferrous metals, neccessary supply of pressed air 6 Atm.
350-RDT 1000/450	Input or output robust roller table with a gutter which prevents leakage of emulsion on the floor, width of cylinders 450 mm, lenght 1000 mm, capacity 1000kg/m.
350-RDT 2000/450	Input or output robust roller table with a gutter which prevents leakage of emulsion on the floor. Width of cylinders 450 mm, lenght 2000 mm,capacity 1000kg/1m.
350-RDM 2000/450	Input or output robust roller table with driven rollers . Driving by electric engine, vormgearbox and invertor. By chain are driving cylinders. With 450 mm, lenght 2000 mm, capacity 1000kg/1m.
350-RDML 2000/450	Input or output robust roller table with driven lers. Driving from RDM throught chain. With 450 mm, lenght 2000 mm, capacity 1000kg/1m, working with RDM 2000/450.
350-RDZ 2000	Output roller conveyer that is neccesary for making angle cuts and for connection to RDT,RDM. Piece of equipment is also a connecting desk for connection with the vice. Lenght 2000 mm, with 450 mm, 7 rollers, bearing capacity 1000kg/m.
350-RDZM 2000	Output roller conveyer with the drive – necessary for making angle cuts and for connection of the machine to RDT. There is an electroengine with the gear box and a frequency converter.
350 V	Roller of roller table RDT pasted into gap.
350-RB	Side support fixed cylinder, height 200 mm, it is mounted to roller tables RDT.
350-RBS	Side movable cylinder for preparation of bundles, adjustable, height 200 mm, it is mounted to RDT, neccessary RB 350.
350-RDH	Independent movable cylinder, capacity 700 kg.
OZP 1000	Mechanical fixed stop with ruler and scale line 1 meter long.
OZP 2000	Mechanical fixed stop with ruler and scale line 2 meters long.
OZP-D 1000	Mechanical fixed stop with digital displey 1 meter long.
OZP-D 2000	Mechanical fixed stop with digital displey 2 meter long.
OZS 2000	Electromechanical stop working with RDM roller table. It has two contacts. When material switches on the first contact, RDM slows down, after switching on the second contact, RDM stops.Digital displey of set
OZS-D 2000	Electromechanical stop working with RDM roller table. It has two contacts. When material switches on the first contact, RDM slows down, after switching on the second contact, RDM stops.Digital displey of setting lenght.
OZP-L	2 meters long extension of OZP.
OZD-L	2 meters long extension of OZD.
350-OZ 1000	working desk, assembled beside the vice for measuring of the material till 1m
350-OZK	Console for supporting of the exceeding parts of the measuring arrangement.
350-QPARTS	Set of easy worn away spare parts: * 6 pcs: side vidia plates LNKW 19-1198000,HF10 * 6 pcs: screw for vidia plates US14 * 4 pcs: bearing 6003 2RS * 20 pcs: cleaning brush 300,350,440-CK
350-NAV	Manual instructions – printed version.
PAL2	Packing on the palette 2,4 m x 2,4 m.
OBAL2	Package - wooden box 2,4 m x 2,4 m.
